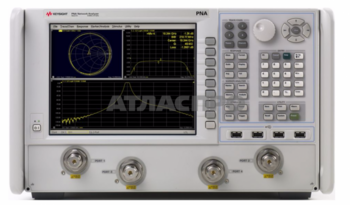

N5227A СВЧ-анализатор цепей
СВЧ-анализатор цепей серии PNA, 67 ГГц
Основные возможности и технические характеристики
- Непревзойденное качество измерений и разработок
- Высочайшая достоверность измерений повышает качество разработки устройств
- Самый высокопроизводительный в отрасли анализатор цепей позволяет решать самые сложные измерительные задачи
- Наивысшая точность измерений S-параметров
- Возможность выбора такой конфигурации прибора, которая наилучшим образом отвечает потребностям измерений и возможностям бюджета
Технические характеристики
| Максимальная частота | 67 ГГц |
|---|---|
| Динамический диапазон | 128 дБ |
| Выходная мощность | 13 дБм |
| Зашумленность графика | 0,002 дБ СКЗ |
| Количество встроенных портов | 2 или 4 порта |
| Гармоники | –60 дБн |
| Минимальный уровень шумов | –116 дБм |
| Максимальная скорость (201 точка, 1 развертка) | 6,3 мс |
| Серии анализаторов цепей | Анализатор цепей высшего класса серии PNA |
| Приложения |
|
| Компоненты |
|
| Настольные | Да |
Опции и обновления
Опции
Для получения более подробной информации: Загрузить руководство по конфигурации
| Hardware options | |||
| N5227A-200 | 2 ports, single source, base hardware configuration | ||
| N5227A-201 | 2 ports, single source, with configurable test set | ||
| N5227A-210 | 2 ports, single source, with metrology configuration | ||
| N5227A-219 | 2 ports, single source, configurable test set, extended power range, bias-tees | ||
| N5227A-400 | 4 ports, dual source, base hardware configuration | ||
| N5227A-401 | 4 ports, dual source, with configurable test set | ||
| N5227A-410 | 4 ports, dual source, with metrology configuration | ||
| N5227A-419 | 4 ports, dual source, configurable test set, extended power range, bias-tees | ||
| Additional capability | |||
| N5227A-008 | Pulsed RF Measurements | ||
| N5227A-010 | Time Domain | ||
| N5227A-020 | Add IF inputs | ||
| N5227A-021 | Add pulse modulator to internal first source | ||
| N5227A-022 | Add pulse modulator to internal second source | ||
| N5227A-025 | Add four internal pulse generators | ||
| N5227A-028 | Noise figure measurements using standard receivers | ||
| N5227A-080 | Frequency offset measurements | ||
| N5227A-082 | Scalar calibrated converter measurements | ||
| N5227A-083 | Vector and scalar calibrated converter measurements | ||
| N5227A-084 | Embedded LO measurements | ||
| N5227A-086 | Gain compression application | ||
| N5227A-087 | Intermodulation distortion measurements | ||
| N5227A-118 | Fast CW Mode | ||
| N5227A-460 | Integrated true-mode stimulus application | ||
| N5227A-551 | N-port calibrated measurements | ||
| N5227A-302 | Application for use with temperature-characterized CalPods | ||
| N5227A-301 | Application for use with standard CalPods | ||
| N5227A-088 | Source Phase Control | ||
| N5227A-089 | Differential and I/Q devices application | ||
| N5227A-007 | Automatic Fixture Removal | ||
| N5227A-015 | Dynamic Uncertainty for S-Parameter Measurements | ||
| N5227A-090 | Spectrum Analyzer | ||
| N5227A-093 | Extended Spectrum Analyzer to 110 GHz | ||
| N5227A-094 | Extended Spectrum Analyzer above 110 GHz | ||
| Calibration Software for Self-Maintainers | |||
| N5227A-897 | Built-in performance test software for inclusive calibration, perpetual license | ||
| N5227A-898 | Built-in performance test software for standards compliant calibration, perpetual license | ||
| Calibration documentation | |||
| N5227A-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) | ||
| N5227A-A6J | ANSI Z540-1-1994 Calibration | ||
| N5227A-UK6 | Commercial calibration certificate with test data | ||
| Accessories | |||
| N5227A-1CP | Rack mount kit for installation with handles | ||
| N5227A-1CM | Rack mount kit for installation without handles | ||
| N1966A | Адаптер ввода/вывода импульсов | ||
| N6171A | Программное обеспечение MATLAB | ||
Библиотека
Чтобы увидеть все: посетите библиотеку
Основные сведения о продукте
Посмотреть более подробную информацию о возможностях этого продукта.
Технические характеристики
- Data Sheet and Technical Specifications, N5227A 2-Port and 4-Port PNA Network Analyzers
- Physical Layer Test System (PLTS) 2016 - Technical Overview
- Data Sheet and Technical Specifications, N5227A PNA Network Analyzers Option 210 and 410
- еще
Руководства
- Service Guide N5227A 2-Port and 4-Port PNA Microwave Network Analyzers
- Installation Note, Windows 7 Operating System Upgrade Kit for PNA Family Network Analyzers
- Installation Note, Licensed Functionality Upgrade Kit for All N522xA Microwave Network Analyzers
- еще
Брошюры и сравнительные обзоры
- PNA and PNA-X Series Vector Network Analyzers (VNAs) - Option 090 Product Fact Sheet
- Анализаторы СВЧ цепей серий Keysight PNA и PNA-L -Рекомедации по применению
- PNA and PNA-X Series Vector Network Analyzers - Flyer
- еще
Руководства по выбору продуктов и конфигурации
Демонстрационные материалы
Справочная документация
Узнайте, как использовать данный продукт для решения конкретных измерительных задач.
| Understanding the Fundamental Principles of Vector Network Analysis - Application Note 1287-1 This application note explores the fundamental principles of vector network analysis. The discussion includes the common parameters (S-parameters). RF fundamentals such as transmission lines and the Smith chart will also be reviewed. |
| Exploring the Architectures of Network Analyzers (1287-2) – Application Note This Application Note explains that Network analyzers have become one of the most important tools for characterizing the performance of high-frequency components and devices. |
| Network Analysis Basics - Applying Error Correction To Network Analyzer Measurements (AN 1287-3) Only perfect test equipment would not need correction. Imperfections exist in even the finest test equipment and cause less than ideal measurement results. |
| Network Analysis - Filter And Amplifier Measurement Examples (AN 1287-4) The network analyzer is used for a variety of device and component characterization tasks in both laboratory and production environments. |
| Network Analysis - In-Fixture Measurements (1287-9) |
| Network Analysis Solutions Advanced Filter Tuning Using Time Domain Transforms (AN 1287-10) Tuning multi-stage, coupled-resonator band-pass filters is difficult due to interactions between resonator and coupling tuning. To achieve the proper pass-band response and to get low return loss you must precisely tune the frequency of each resonator and precisely set each coupling between the... |
| Specifying Calibration Standards and Kits for Keysight Vector Network Analyzers (AN 1287-11) This paper discusses calibration standard definitions, calibration kit content, and its structure requirements for Keysight's vector network analyzers. Also provided are set up examples and how to modify an existing calibration kit definition file. |
| Network Analysis Basics - Understanding and Improving Dynamic Range (1363-1) This Application Note explains that achieving the highest possible network analyzer dynamic range is extremely important when characterizing many types of microwave devices, and in some cases the key factor in determining measurement performance. |
| Network Analysis - De-embedding and Embedding S-Parameter Networks (1364-1) At RF and microwave frequencies, it becomes difficult to directly measure devices with nonstandard connectors (for example, devices using surface-mount packaging). |
| Mixer Transmission Measurements Using The Frequency Converter Application (1408-01)–Application Note Microwave PNA Series Network Analyzer Application Note, mixer transmission measurements using the frequency converter application note 1408-1 |
| Mixer Conversion-Loss and Group-Delay Meas. Techniques and Comparisons (1408-02) – Application Note This paper compares techniques and instruments for measuring conversion loss and group delay on a single stage converter with an embedded low pass filter. Conversion loss using a: spectrum, scalar, and vector network analyzer. |
| Improving Meas. and Calibration Accuracy using the Frequency Converter (1408-3) – Application Note Improving Measurement and Calibration Accuracy Using the Frequency Converter Application - AN 1408-3 |
| PNA - Amplifier Linear and Gain Compression Measurements (1408-7) Application note covering testing of an amplifier's linear S-parameters and gain compression using Keysight's microwave PNA Series of vector network analyzers. |
| PNA - Amplifier Swept-Harmonic Measurements (1408-8) This application note cover testing an amplifiers harmonics, using (MW) PNA Series of vector network analyzers. Linear parameters, such as gain and return loss are covered in Application Note 1408-7. |
| PNA - Amplifier-CW and Swept IMD Measurements (1408-9) This application note covers testing an amplifier's intermodulation-distortion products, using (MW) PNA Series of vector network analyzers. |
| PNA - Amplifier - High-Power Testing (1408-10) |
| PNA - Pulsed Measurement Accuracy (1408-11) |
| PNA - Pulsed-RF S-Parameter Measurements Using Wideband and Narrowband Detection (AN 1408-12) |
| PNA - Analyze Lightwave Components (1408-14) |
| Measuring Power-Added Efficiency (PAE) with PNA Network Analyzers (1408-16) – Application Note |
| Точные измерения интермодуляционных искажений с помощью анализатора цепей серии PNA-X В данном документе рассматриваются методы обеспечения точности двухтональных измерений интермодуляционных искажений при использовании СВЧ-анализатора цепей PNA-X |
| Measuring Group Delay of Frequency Converters with Embedded LO |
| High Power Amplifier Measurements Using Keysight's Nonlinear Vector Network Analyzers AN 1408-19 This application note discusses the unique challenges involved in testing high-power devices using Keysight's N5242A nonlinear vector network analyzer(NVNA). |
| Высокоточные измерения коэффициента шума с использованием анализаторов цепей серии PNA-X Данные рекомендации описывают решения проблем, связанных с измерением коэффициента шума, с помощью анализаторов цепей серии PNA-X |
| Active Device Characterization in Pulse Operation Using the PNA/PNA-X - Application Note This AN discusses pulsed S-parameter measurements using the PNA-X series and measurement techniques that enable power-dependent active device characterization including compression and distortion. |
| Основы измерения диэлектрических свойств материалов - Рекомендации по применению В рекомендациях обсуждаются измерительные приборы, тестовая оснастка и программное обеспечение для измерения диэлектрических свойств материалов. |
| Решения для тестирования активных компонентов - Рекомендации по применению Данные рекомендации описывают применение современных векторных анализаторов цепей для автоматизации традиционных многоприборных радиочастотных измерительных систем |
| On-Wafer SOLT Calibration Using 4-port PNA-L Network Analyzers - Application Note This documentation is intended for on-wafer applications using the 4-port, 20 GHz, PNA-L network analyzer with two dual probes to achieve full 4-port on-wafer calibrations manually. This application note provides the step-by-step instructions needed to set up a calibration kit in order to perform a 4-port SOLT (Short-Open-Load-Thru) calibration using only three thrus. |
| Electronic vs. Mechanical Calibration Kits: Calibration methods and Accuracy – White Paper The purpose of this paper is to clarify the differences between electronic and mechanical calibrations and how these differences affect measurement accuracy. |
| ENA/PNA Calibration - User Characterization: Electronic Calibration ECal modules offer calibrations in a fraction of the time it would take to calibrate using mechanical calibrations, and are not just limited to quick accurate calibrations. |
| Оптимизация измерений коэффициента шума на пластине в диапазоне частот до 67 ГГц Данные рекомендации по применению описывают техническое решение, использующее метод холодного источника, на базе анализатора цепей серии PNA-X, работающего в микроволновом диапазоне. |
